Change Data Capture with Azure Data Factory and Synapse Analytics

When we perform data integration and ETL processes, the most effective way is only read the source data that has changed since the last time the pipeline ran, rather than always querying an entire dataset on each run.

We will explore the different Change Data Capture (CDC) capabilities (CDC in Mapping Data flowTop level CDC in ADFSynapse link) available in Azure Data Factory and Azure Synapse Analytics.

Support data source and target

currently, ADF support the following data source and target

Supported data sources

  • Avro
  • Azure Cosmos DB (SQL API)
  • Azure SQL Database
  • Azure SQL Managed Instance
  • Delimited Text
  • JSON
  • ORC
  • Parquet
  • SQL Server
  • XML
  • Snowflake

Supported targets

  • Avro
  • Azure SQL Database
  • SQL Managed Instance
  • Delimited Text
  • Delta
  • JSON
  • ORC
  • Parquet
  • Azure Synapse Analytics

Azure Synapse Analytics as Target

When using Azure Synapse Analytics as target, the Staging Settings is available on the main table canvas. Enabling staging is mandatory when selecting Azure Synapse Analytics as the target.

Staging Settings can be configured in two ways: utilizing Factory settings or opting for a Custom settingsFactory settings apply at the factory level. For the first time, if these settings aren’t configured, you’ll be directed to the global staging setting section for configuration. Once set, all CDC top-level resources will adopt this configuration. Custom settings is scoped only for the CDC resource for which it is configured and overrides the Factory settings.

Known limitations

  • Currently, when creating source/target mappings, each source and target is only allowed to be used once.
  • Complex types are currently unsupported.
  • Self-hosted integration runtime (SHIR) is currently unsupported.

CDC ADLS to SQL Database

Create a CDC artifact

Go to the Author pane in data factory. Below Pipelines, a new top-level artifact called Change Data Capture (preview) appears.

Configuring Source properties

Use the dropdown list to choose your data source. For this demo, select DelimitedText.

To support Change Data Capture (CDC), it’s recommended to create a dedicated Linked Service, as current implementations use a single Linked Service for both source and target.

You can choose to add multiple source folders by using the plus (+) button. The other sources must also use the same linked service that you already selected.

Configuring target

This demo uses a SQL database and a dedicated Linked Service for CDC.

configuring the target table

If existing tables at the target have matching names, they’re selected by default under Existing entities. If not, new tables with matching names are created under New entities. Additionally, you can edit new tables by using the Edit new tables button.

capturing change data studio appears

let’s click the “columns mapping”

If you want to enable the column mappings, select the mappings and turn off the Auto map toggle. Then, select the Column mappings button to view the mappings. You can switch back to automatic mapping anytime by turning on the Auto map toggle.

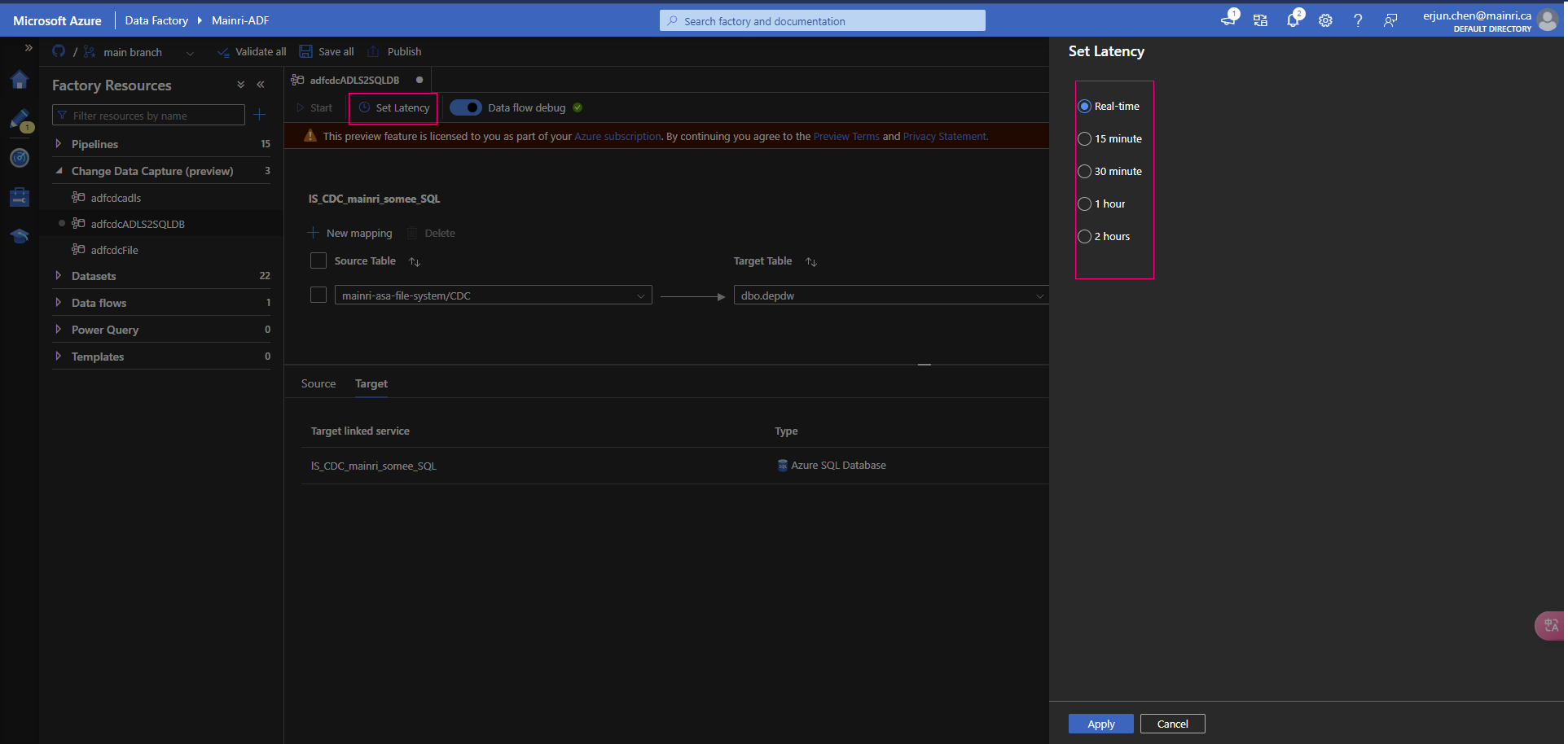

Configure CDC latency

After your mappings are complete, set your CDC latency by using the Set Latency button.

Publish and starting CDC

After you finish configuring your CDC, select Publish all to publish your changes, then Start to start running your change data capture.

Monitoring CDC

For monitoring CDC, we can either from ADF’s studio’s monitor or from CDC studio

Once data changed, CDC will automatically detecting and tracking data changing, deliver to target
